Configuring State Metrics
A metric associated with a state defines what the automaton observes while it is in that state. The values returned by the metric determine which outgoing transition fires next.
To configure a metric, select a state on the canvas and expand the Metric section in the right panel.

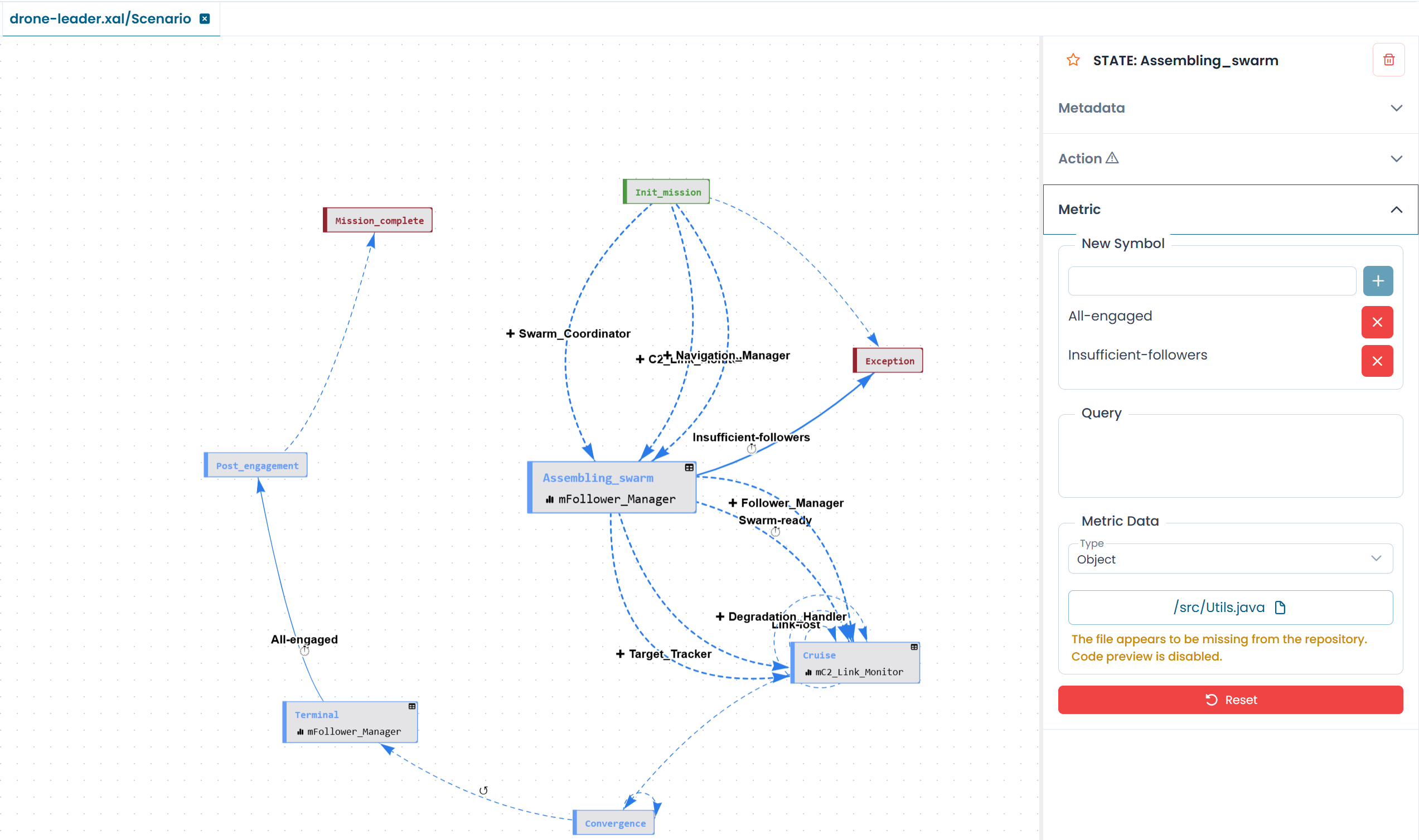

Fig.1 - The Metric section of a state configuration panel
Enumeration values
The enumeration defines the set of values the metric can return. Each value corresponds to a possible outcome that an outgoing transition can match against.
To add a value, type it in the New Symbol field and click +. To remove a value, click the × button next to it.
Info
Enumeration values are used as Metric Value conditions on outgoing transitions. If a transition's metric value does not match any value in the enumeration, it will never fire.
Query
The Query field contains the SQL-like statement used to read the metric's value at runtime. It typically reads the global state of another automaton or a monitored object.
A query follows this pattern:
The this.GROUPLABEL binding ensures the query targets the correct instance of the automaton — the one running on the same monitored object.
When a query is configured, the state node on the canvas displays a grid icon in its top-right corner.
Metric Data configuration
The Metric Data section specifies how the metric is executed.
| Field | Description |
|---|---|
| Type | The execution context: Object for metrics tied to monitored infrastructure objects, Automaton for metrics that reference other automaton instances directly |
| System file | The path to the implementation file (e.g. /src/Utils.java) used by the platform to resolve the metric at runtime |
If the system file is not found in the current repository, the designer displays a warning. This does not prevent the automaton from functioning — the file may exist in the platform's runtime environment.
Resetting the metric
Click Reset to clear the entire metric configuration from the state.
Warning
Resetting a metric removes the query, all enumeration values, and the system file reference. Any transitions that rely on metric values from this state will no longer have matching conditions.
