XAL Designer — Overview
The XAL Designer is a web-based visual editor for creating and modifying automata defined in XAL files.
What you can do
With the XAL Designer you can:
- connect to a Git repository (GitHub, GitLab, Bitbucket) or work directly in the browser
- browse and open XAL files from the repository explorer
- visualize the relationships between all automata in a repository through the Process Overview
- open individual automata and edit their states, transitions, and variables on an interactive canvas
- configure state metadata, actions, metrics, clock constraints, and parameter passing
- commit and push changes directly to the connected repository
The interface at a glance
The designer is organized into three main areas.
The left sidebar provides navigation and editing tools. Its icons give access to:
| Icon | Panel |
|---|---|
| File | Repository Explorer |
| Robot | Automata Management |
| Globe | Global State Variables |
| Clock | Clock Variables |
| Microchip | Add new state |
| Recycle | Add new transition |
| Store | Marketplace (coming soon) |
| Wand | AI Assistant (coming soon) |
The canvas occupies the central area. It displays either the Process Overview graph or the interactive diagram of the currently open automaton.
The right panel displays the configuration form for the currently selected state or transition. It opens automatically when you click on a node or edge on the canvas.
Tabs
Each automaton you open appears as a tab in the top bar, next to the Overview tab. You can have multiple automata open at the same time and switch between them freely.
A dot indicator on a tab signals that the automaton has uncommitted changes.

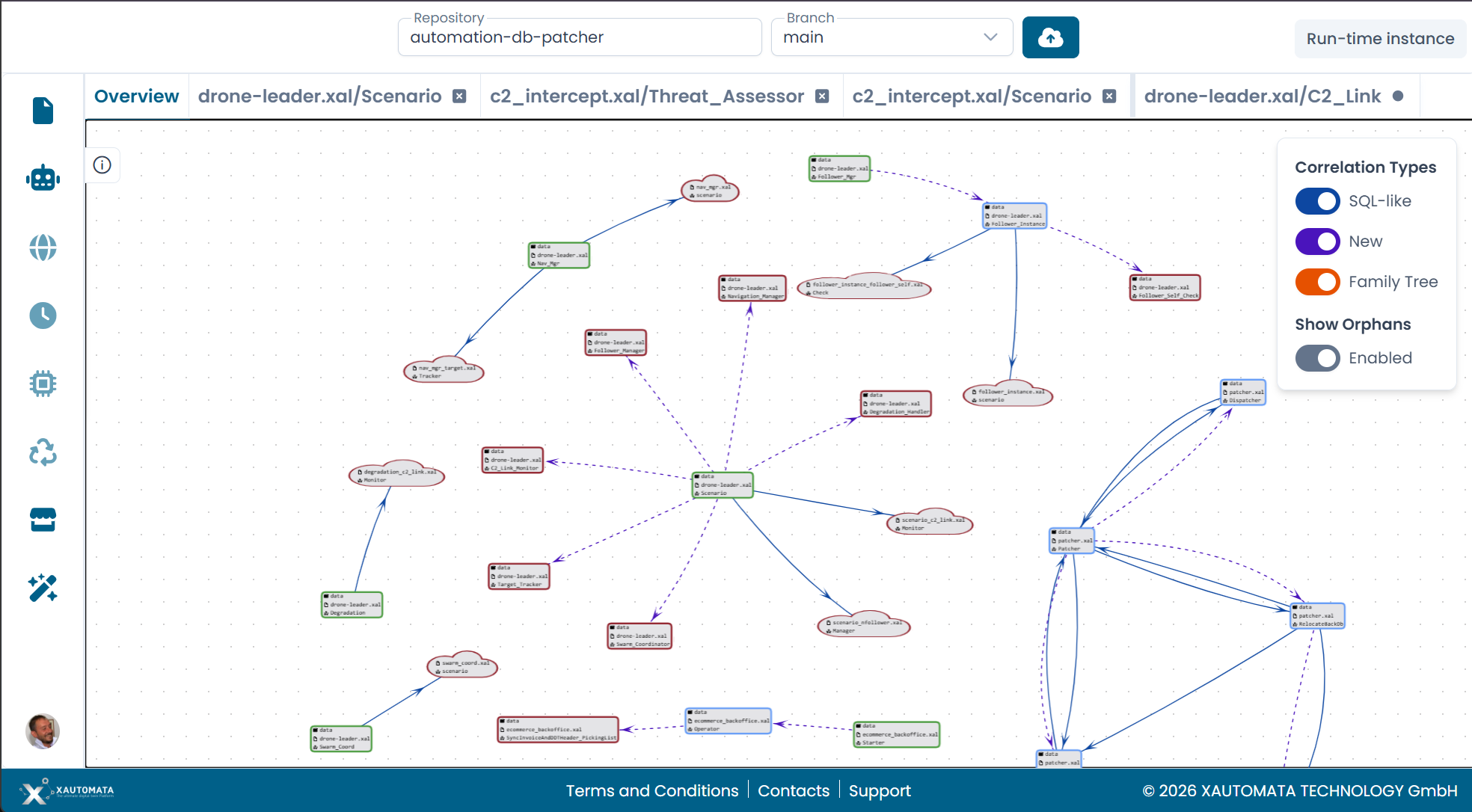

Fig.1 - The XAL Designer interface
