Global State Variables
Global state variables store data that persists across the entire lifecycle of an automaton instance. They act as the automaton's memory — holding values that states and transitions can read and write.
To view and manage global state variables, click the globe icon in the left sidebar. The panel shows all variables defined for the currently active automaton.

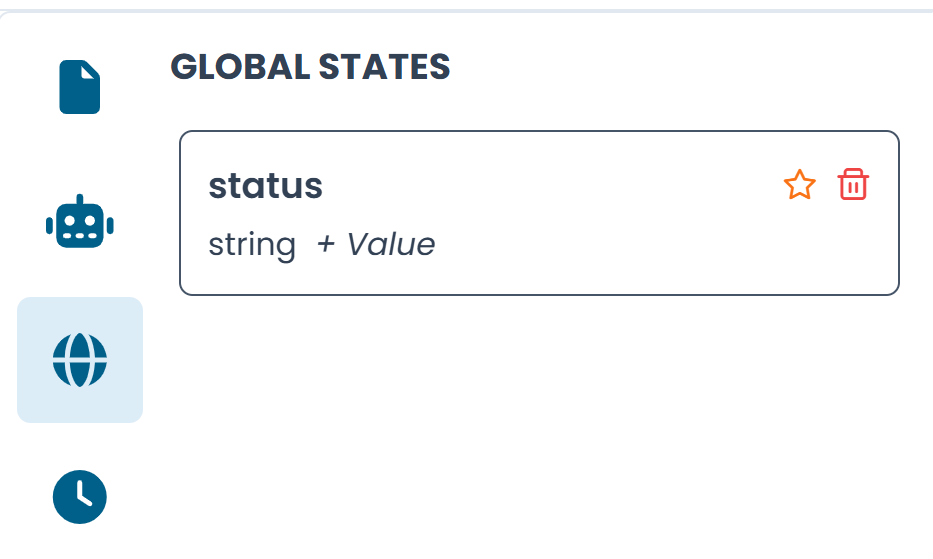

Fig.1 - The Global State Variables panel
Adding a variable
Click + or the add button to create a new variable. Each variable has:
| Field | Description |
|---|---|
| Name | The identifier used to reference the variable throughout the automaton |
| Type | The data type (e.g. string, int, boolean, list) |
| Value | An optional default value assigned when the automaton is first instantiated |
Editing a variable
Click on a variable card to edit it inline. Changes are applied immediately to the automaton.
To delete a variable, click the trash icon on the variable card.
How variables are used
Global state variables are referenced in:
- Metric input and output parameters — passing values to a metric function or capturing its results
- Action input and output parameters — providing context to an action or storing its output
- TransitionNew input parameters — passing data to a child automaton at the moment it is spawned
- Clock constraints — when a variable stores a threshold value used in a time condition
Info
Variables whose names match a global state option in the automaton are automatically prefixed with this.GLOBALSTATE_ in the XAL output. This prefix is handled transparently by the designer — you never need to type it manually.
