Network

Lines Distribution Map

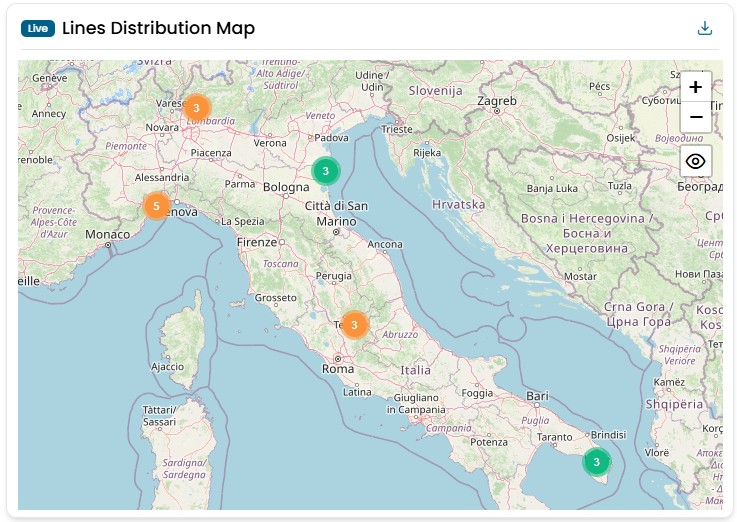

Shows the geographic distribution of all network objects. The data are collected in real time. By clicking on one of the dots you can access the detiled information of that object. The color of the dots represent the status of the object, could be green, reb, yellow, purple, grey.

Info

  • Red indicates the presence of a problem.
  • Yellow indicates the presence of a warning.
  • Green represents the correct status of an object.
  • Purple indicates that no data is being retrieved for the object.
  • Gray represents an object that has no data.

lines-distribution-map

Connectivity Status

This widget consists of two views, described below.

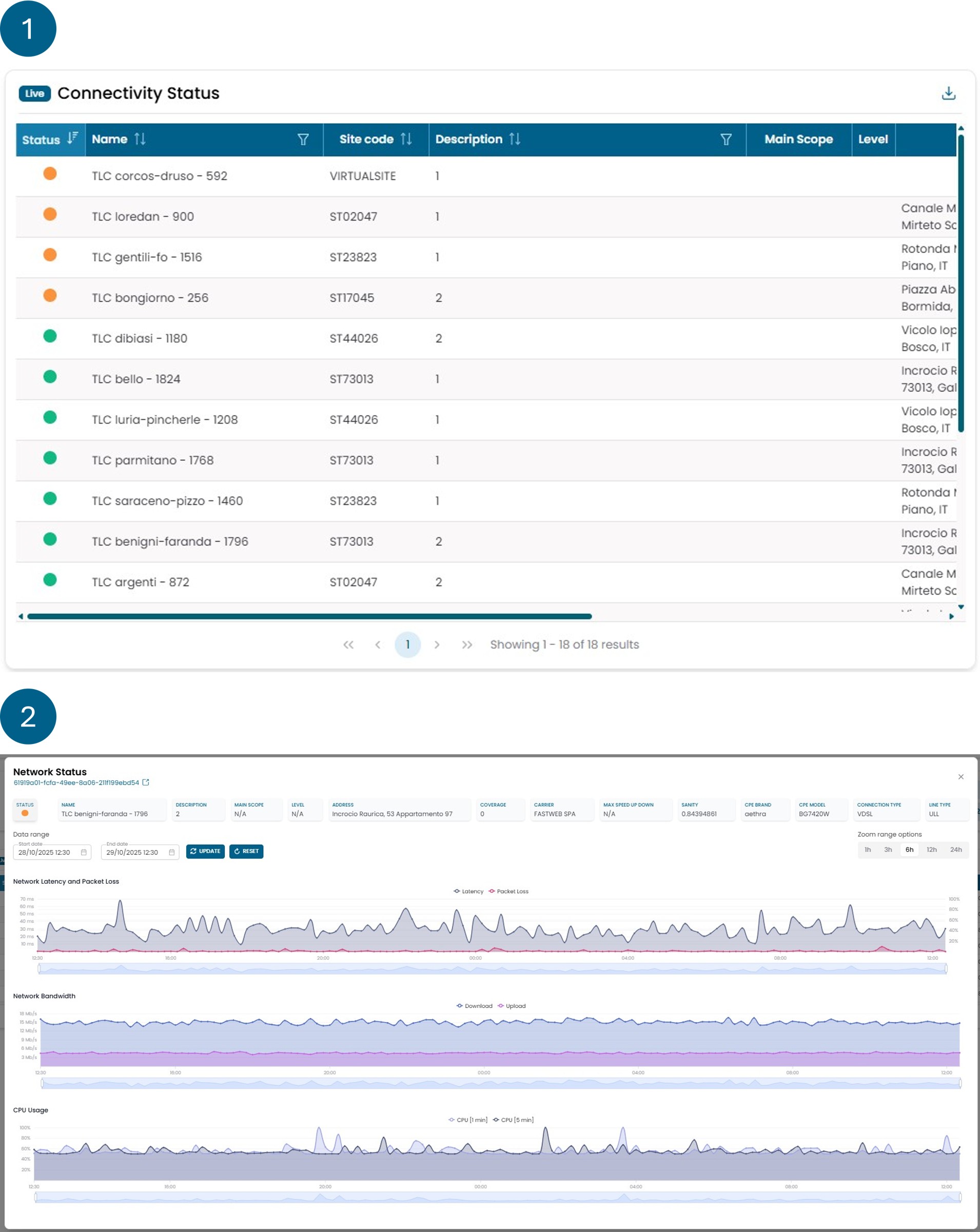

The first view provides an overview of the quality of the monitored networks. The color associated with each network is determined by rules based on the packet loss value of the line. Each network is displayed as a row in a table, from which further information can be consulted, such as:

  • source site of the network;
  • type of connection (primary or backup);
  • contractual maximum bandwidth values for upload and download;
  • sanity index.

The sanity value shown in this table is calculated based on all metrics related to the network, analyzed over the last 24 hours (unlike other capacity planning widgets that focus on longer periods).

By selecting one of the networks, you access the second view, which displays details of the following parameters:

  • Latency;
  • Packet loss;
  • Bandwidth consumption for upload and download;
  • Average CPU usage over 1 and 5 minutes.

Info

(All values are calculated as the average of the last hour of data.)

  • Green: packet loss between 0% and 3%;
  • Yellow: packet loss between 3% and 30%;
  • Red: packet loss over 30%;
  • Purple: no packet loss data available for more than 6 hours.

Info

What is sanity: a value calculated based on the trends of the value metrics of certain objects. Sanity serves as an indicator that tells whether an object is overused or underused for its sizing. Any object with a 0% sanity is considered overused for its sizing, while any object with a 100% sanity is considered underused for its sizing. Objects with a sanity greater than 0% and less than 100% are considered to be used correctly.

connectivity-status

Working Days Average Latency

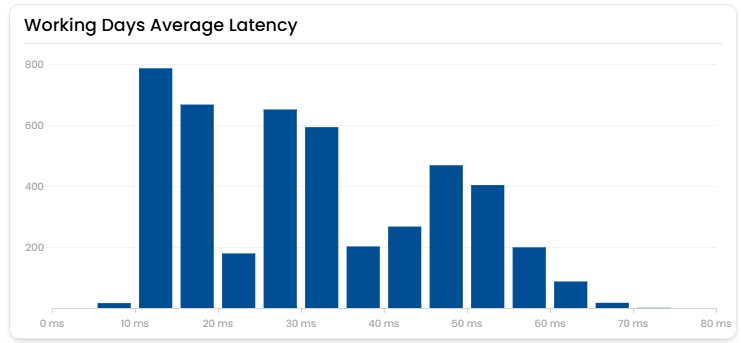

Questo widget mostra la latenza media oraria registrata dall’inizio del mese su tutte le linee della rete.
Ogni barra indica il numero di volte in cui una linea ha avuto una determinata latenza media oraria nel periodo considerato.

L’obiettivo del widget è fornire una visione immediata della qualità complessiva della rete.
Una rete aziendale può essere considerata in buone condizioni se la maggior parte delle barre si colloca al di sotto dei 40 ms.

working-days-average-latency

WAN Resources Status

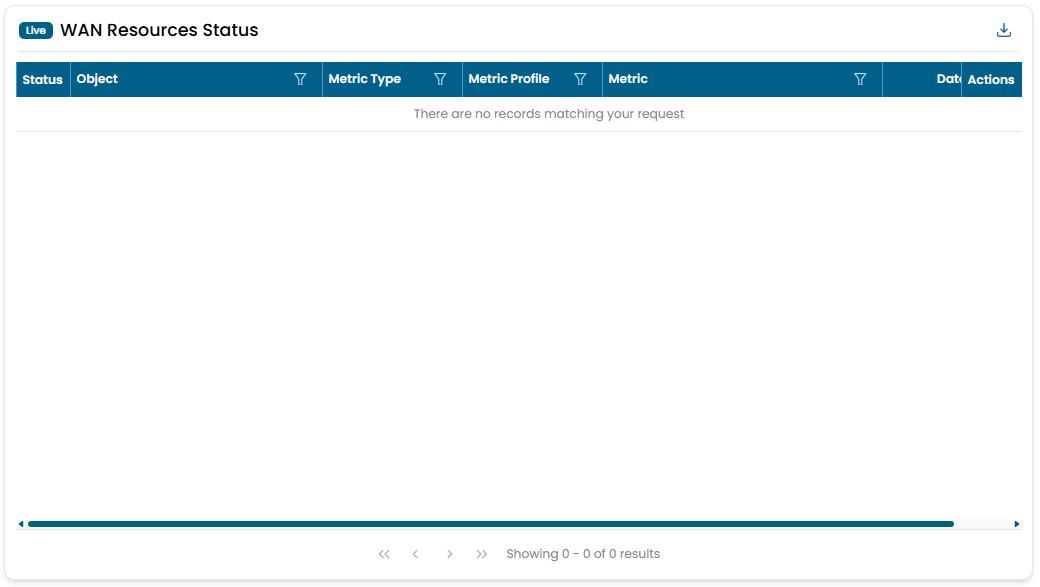

Shows the status of all network apparatus. This is the widget that allow you to see each problem that is present on the netwrok in any given time. The objects are sorted by color, having the reds on top, and by date, with the most recent on top. By clicking on the magnifying glass, you can view the history of the statuses associated with that object. Meanwhile, clicking on the chain symbol opens a modal window with information about the actions taken by the automata for managing that critical event.

Info

  • Red indicates the presence of a problem.
  • Yellow indicates the presence of a warning.
  • Green represents the correct status of an object.
  • Purple indicates that no data is being retrieved for the object.
  • Gray represents an object that has no data.

wan-resources-status
